詳細介紹

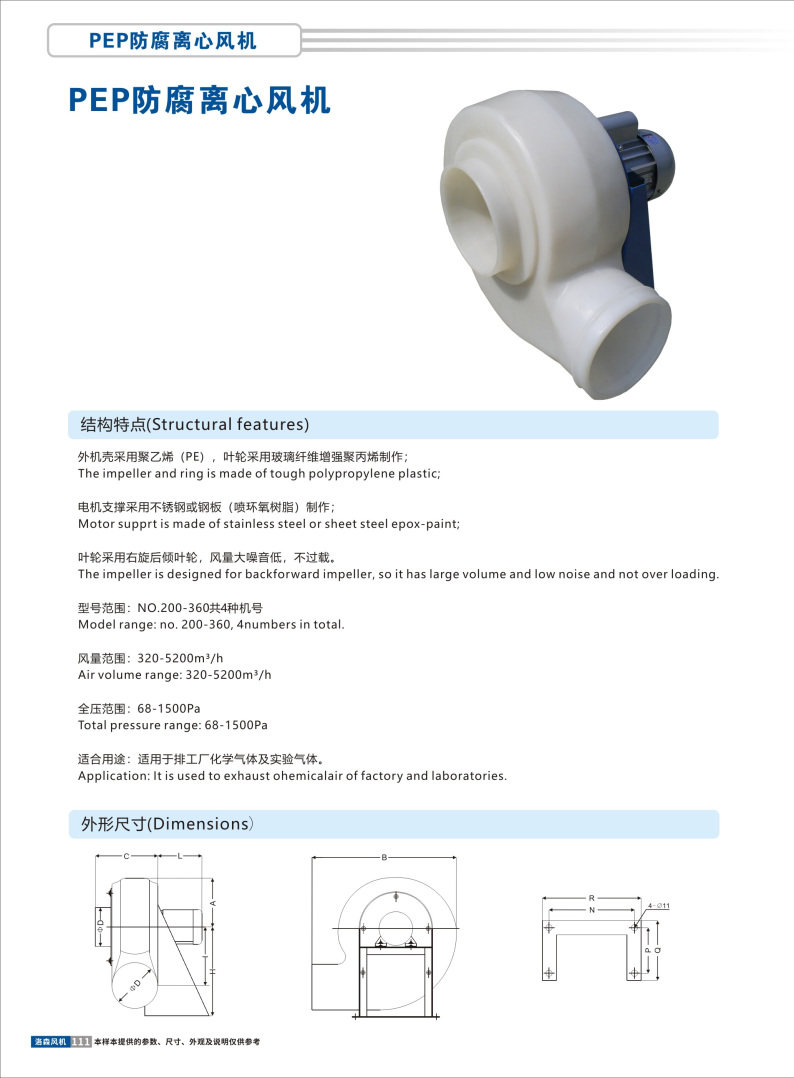

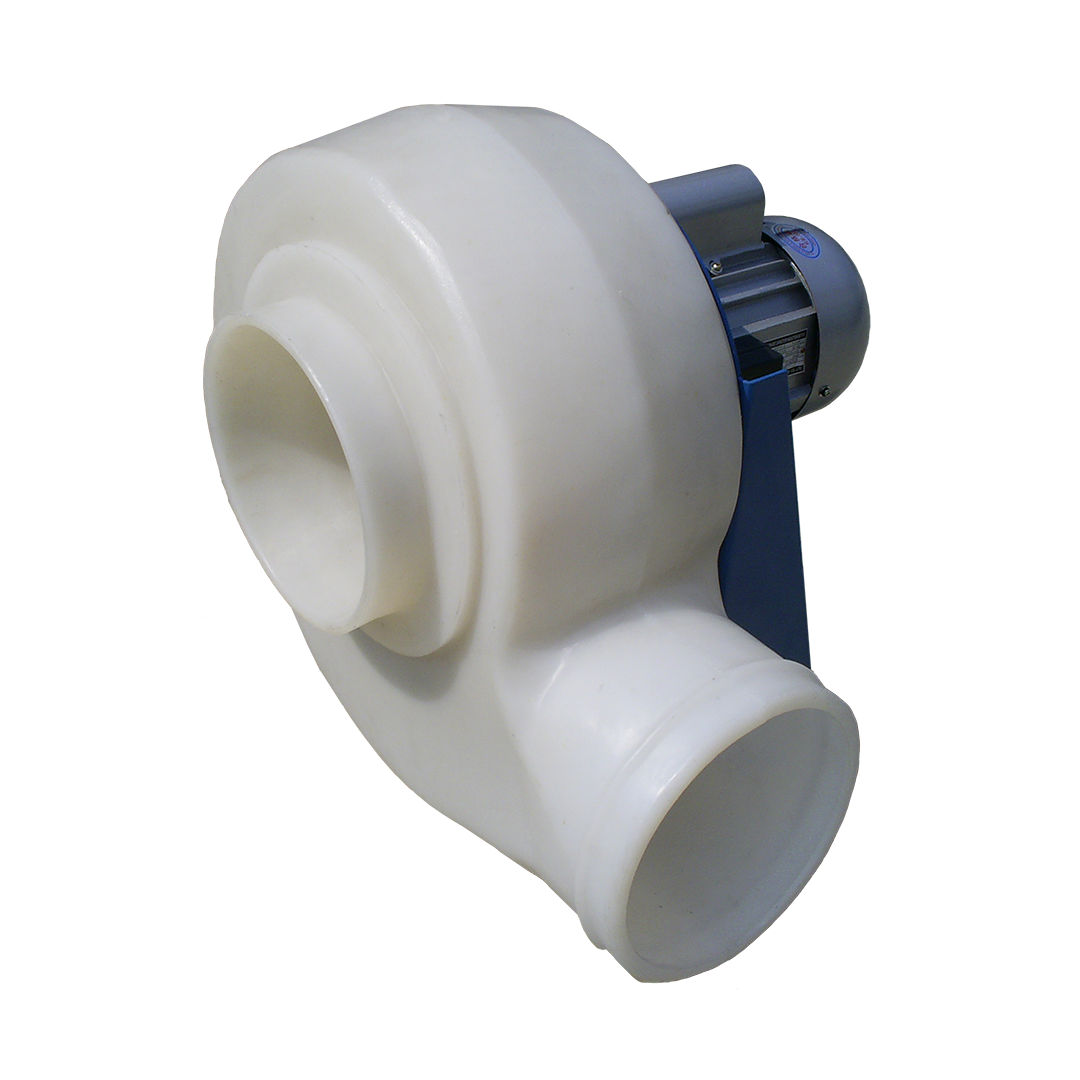

PEP防腐離心風機
結構特點：
Structural features：
外機殼采用聚乙烯（PE），葉輪采用玻璃纖維增強聚丙烯制作；
The impeller and ring is made of tough polypropylene plastic;
電機支撐采用不銹鋼或鋼板（噴環(huán)氧樹脂）制作；
Motor supprt is made of stainless steel or sheet steel epox-paint;
葉輪采用右旋后傾葉輪，風量大噪音低，不過載。
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading.
型號范圍：NO.200-360共4種機號
Model range: no. 200-360, 4numbers in total.
風量范圍：320-5200m3/h
Air volume range: 320-5200m3/h
全壓范圍：68-1500Pa
Total pressure range: 68-1500Pa
適合用途：適用于排工廠化學氣體及實驗氣體。
Application: It is used to exhaust ohemicalair of factory and laboratories.
