詳細介紹

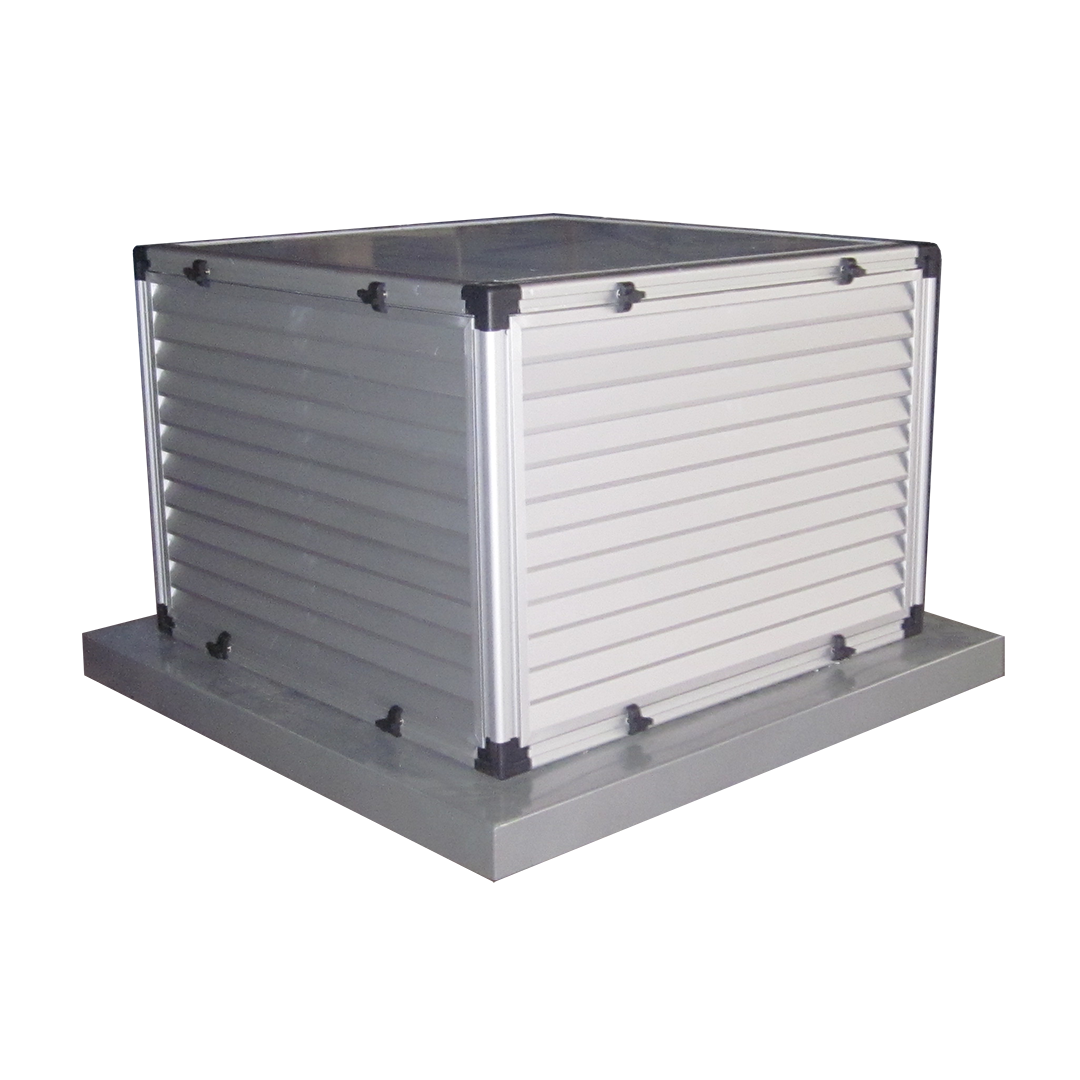

RCD柜式屋頂離心風機
結構特點：
Structural features：
風機采用鋁合金框架及鋁合金防雨百葉；
The frame of cabinet fan is made of aluminium, the panel adapt waterproof shutter;
采用后傾葉輪，風量大噪音低，不過載。
The impeller is designed for backforward impellet, so it has large volume and low noise and not over loading.
型號范圍：NO.250-1000共14種機號
Model range: no. 250-1000, 14numbers in total
風量范圍：880-60000m3/h
Air volume range: 880-60000m3/h
全壓范圍：57-1254Pa
Total pressure range: 57-1254Pa
適合用途：廣泛用于工廠、倉庫、商場、辦公樓、住宅、實驗室等。
Application: It is suitable for factry, warehouse, supermark, office-lock, dwelling and laboratories etc.
